Wedges
Manufacturers & Exporters of Prestressed and Post Tensioning System products in India.
The GripFast wedge are used in the Mining and Tensioning market where 100% reliability is the benchmark. The product locks steel strand in the conical hole of the wedge block, GripFast barrel, ground anchor or double end joiner and allow transmission of the tension in the steel wire into the Anchors or Barrels. Every grip is subject to close Quality control.

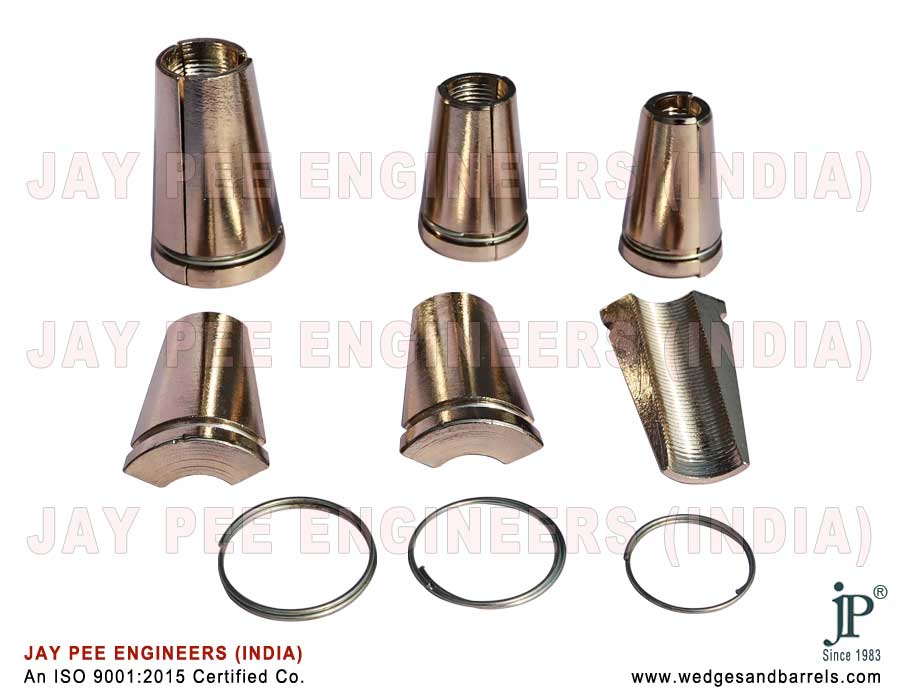

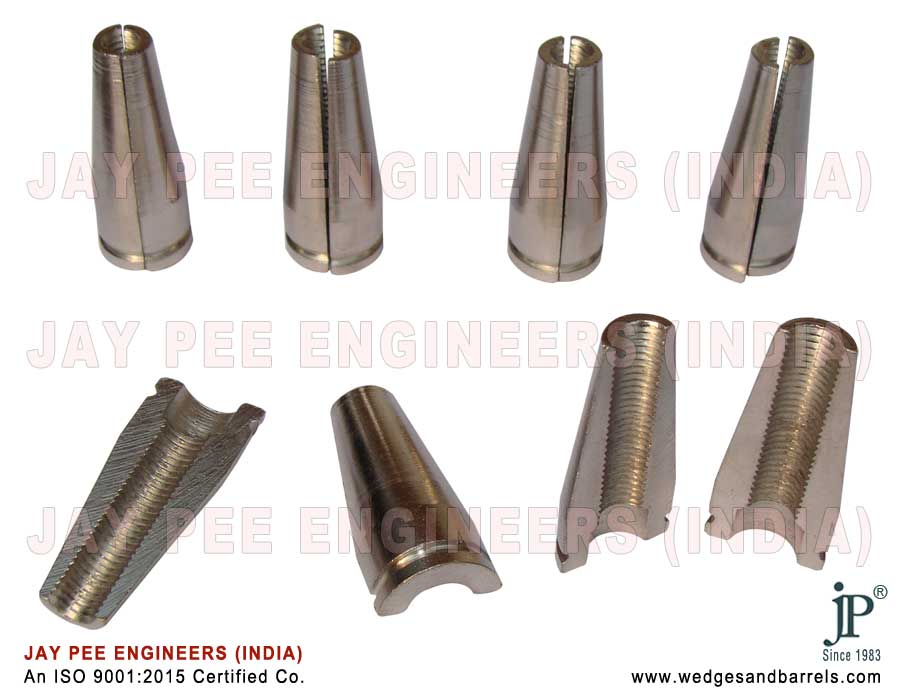

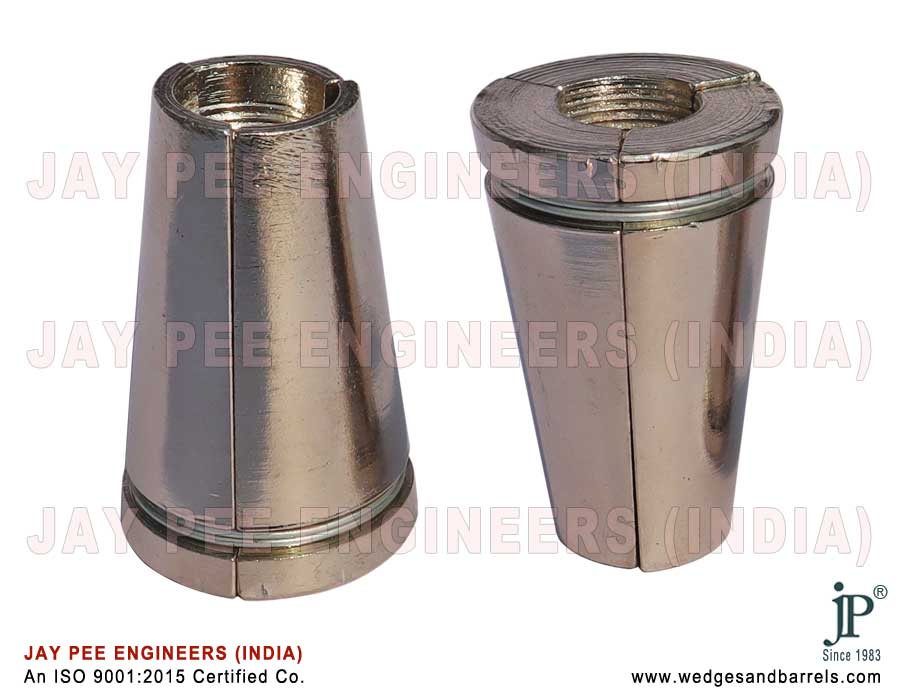

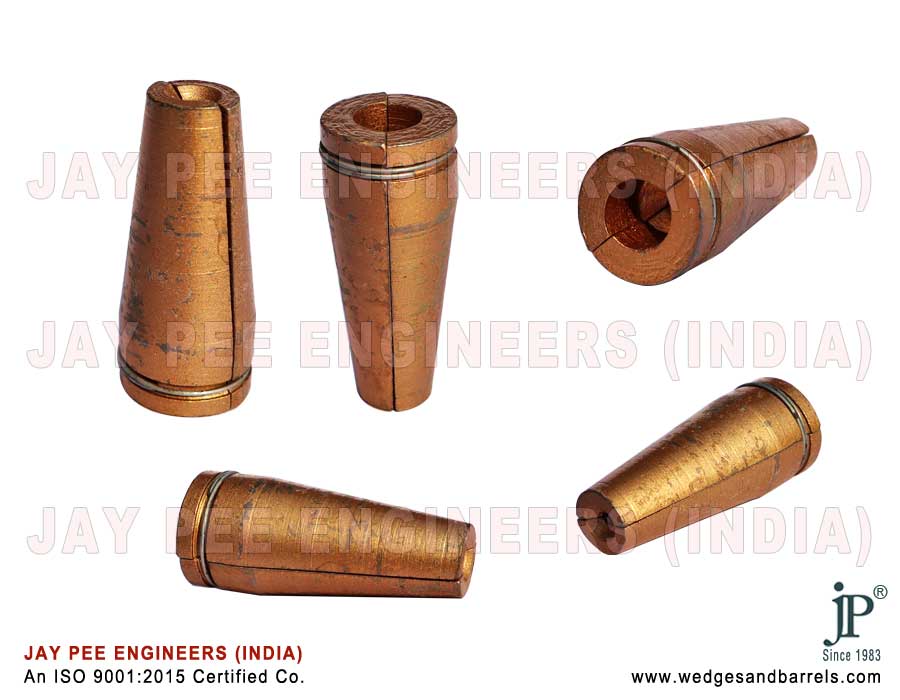

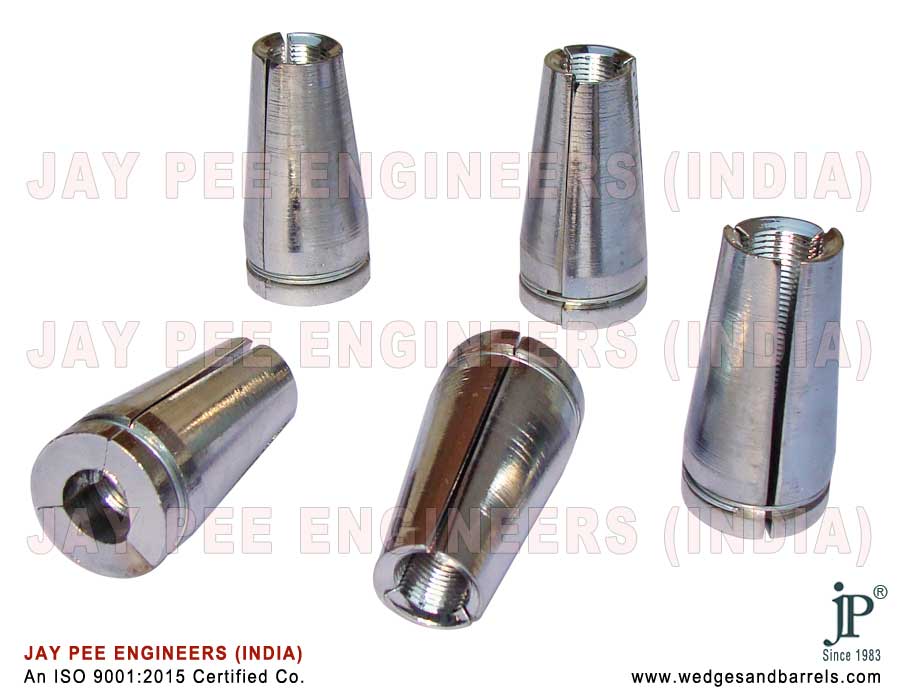

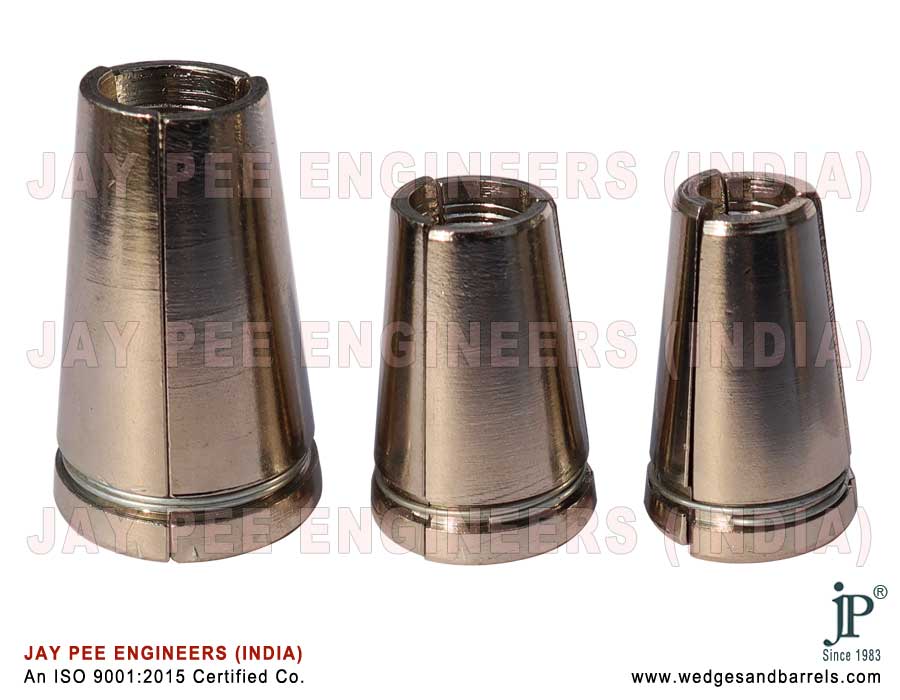

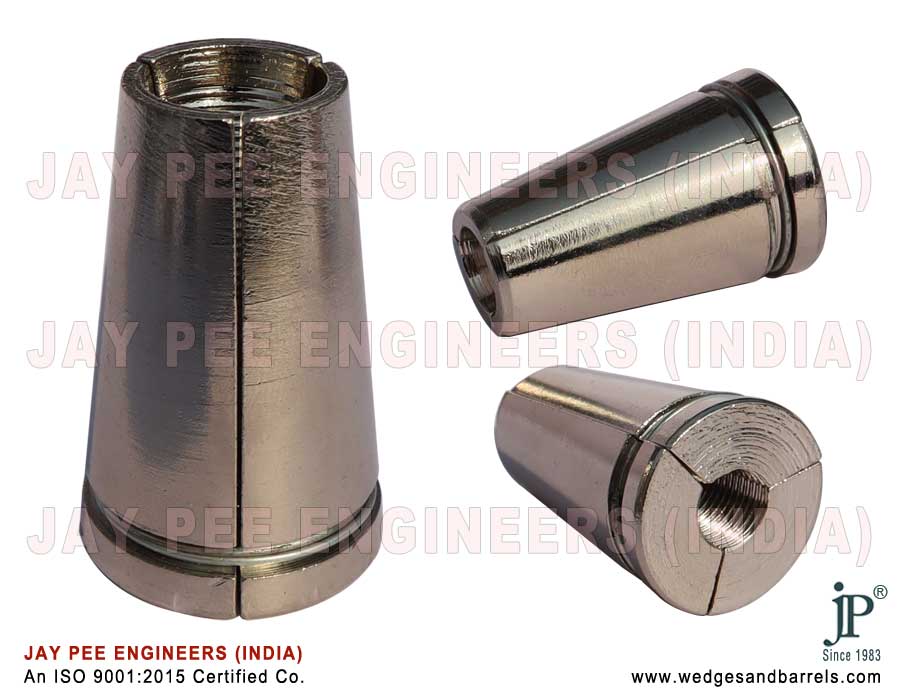

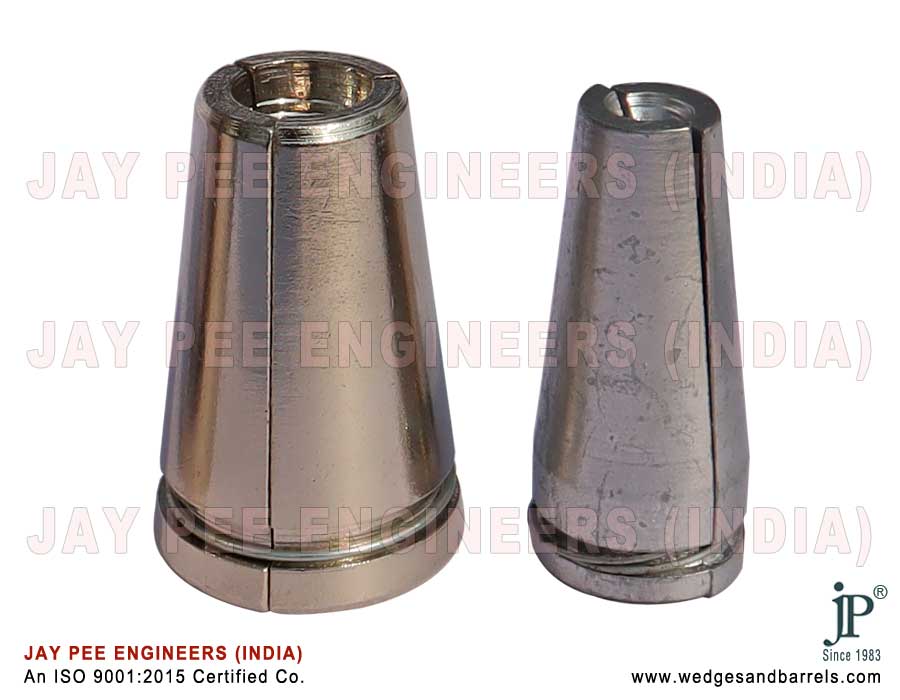

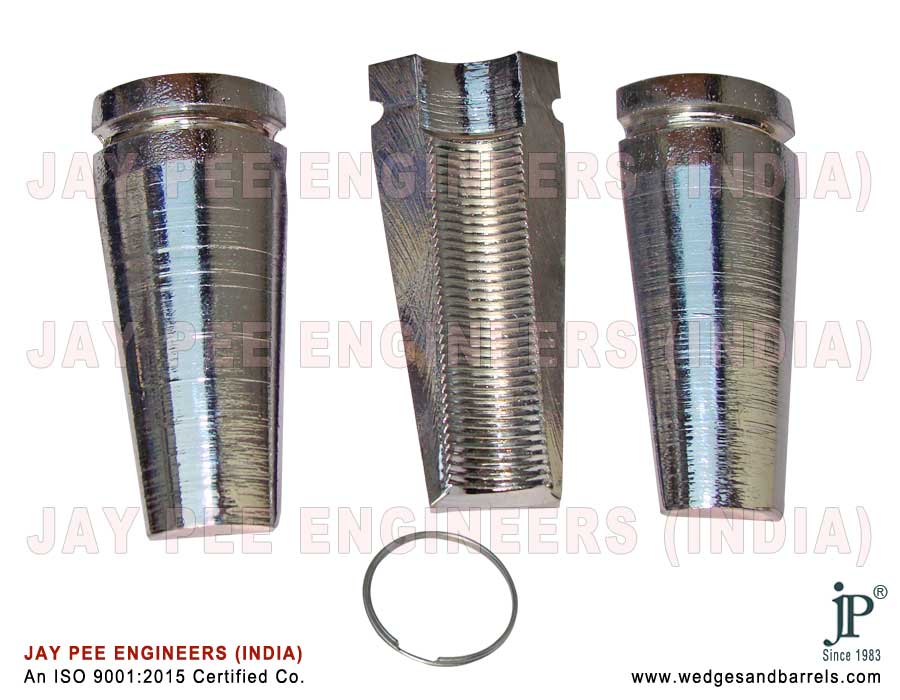

The anchorage systems wedges and barrels are also use in pre & post tension concrete manufacturing. Wedges are Pieces of tapered high-strength heat-treated steel with internal serrations (teeth) that penetrate the prestressing steel during transfer of prestressing force. Some anchorage systems use two-part wedges and some use three-part wedges. Wedge cavity The tapered opening in the anchor or wedge plate designed to allow the strand passing through and to accommodate the seating of the wedges. Trumpet Two-part wedges Three-part wedges.
We also have expertise in the manufacture of made to order ranges specific to your production system and requirements.

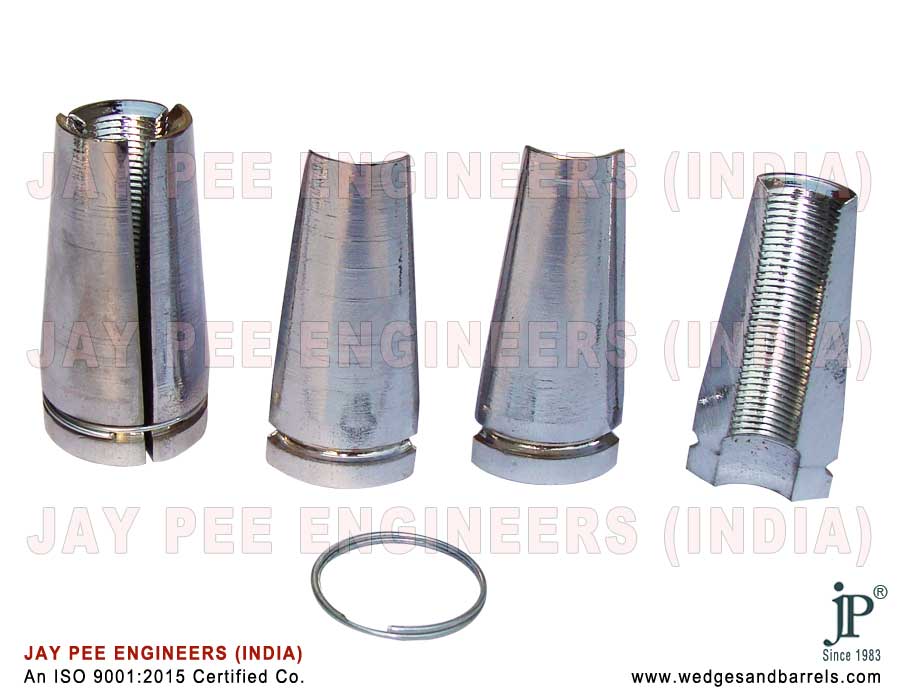

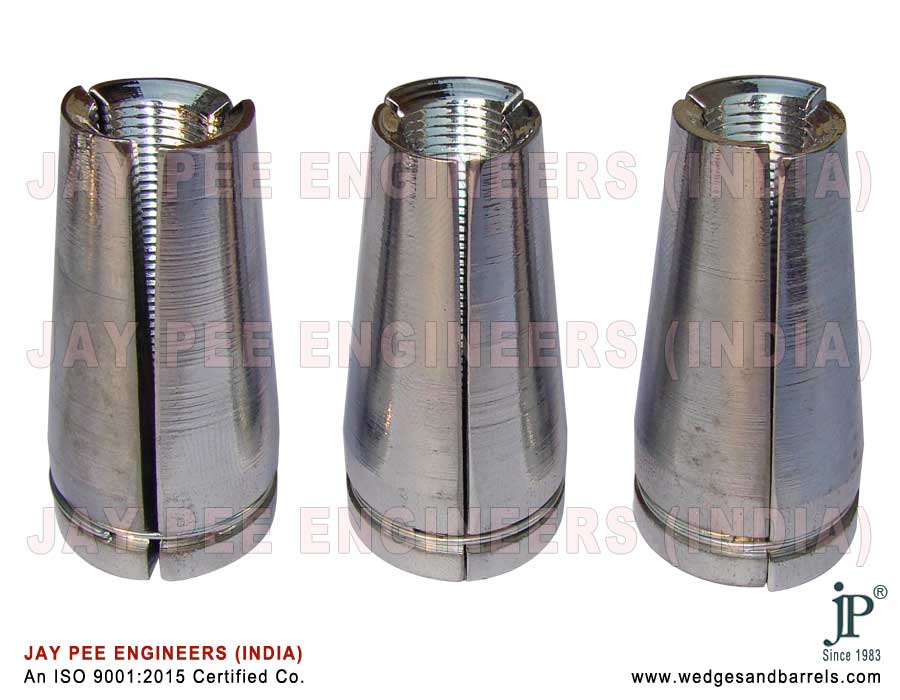

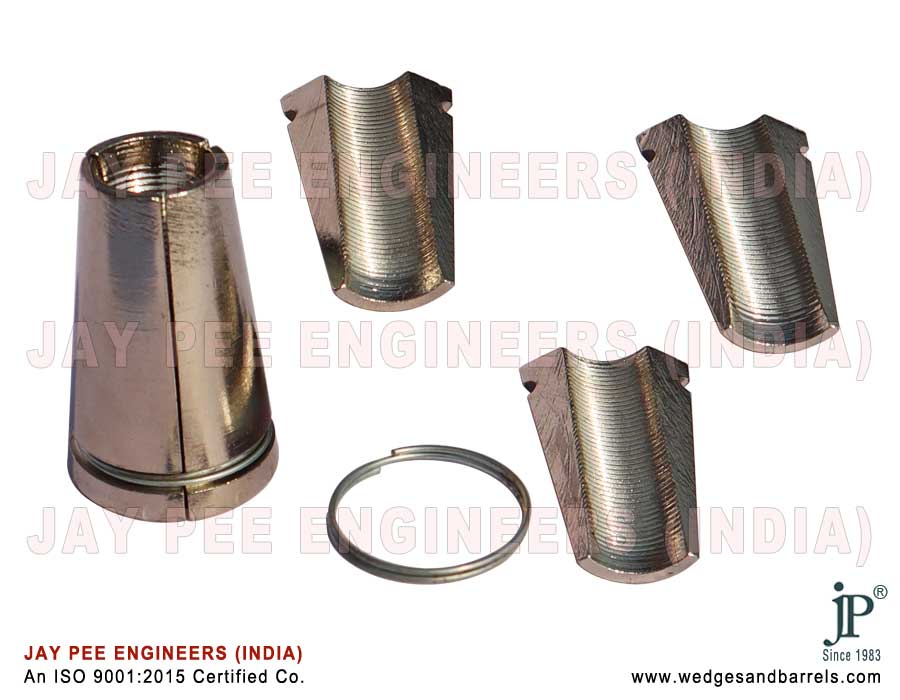

The 3-Piece anchor wedges are recommended for use on permanent anchors and/or anchors requiring inceremental loading. They uniformly engage the strand with less relaxation at low loads. They are manufactured from quality steels and are case hardened for durability.
The 2-Piece anchor wedges are useful in higher stress applications where the anchor is loaded and simply locked off, typical to temporary applications. They are manufactured from quality steels and are case hardened for durability.
| S.no. | Wedge Type | Product Code | No. of Segments | MOQ |
| 1 | 15.3MM Wedges | JAYPEE-201 | 3 | 1000 Sets |
| 2 | 12.7MM Wedges | JAYPEE-202 | 3 | 1000 Sets |
| 3 | 12.7MM Wedges | JAYPEE-203 | 2 | 1000 Sets |
| 4 | 9.5MM Wedges | JAYPEE-204 | 3 | 1000 Sets |
| 5 | 9.5MM Wedges | JAYPEE-205 | 2 | 1000 Pairs |
| 6 | 7.9MM Wedges (XL Type) | JAYPEE-206 | 2 | 1000 Pairs |
| 7 | 7.9MM Wedges | JAYPEE-207 | 2 | 1000 Pairs |
| 8 | 6MM Wedges (XL Type) | JAYPEE-208 | 2 | 1000 Pairs |
| 9 | 6MM Wedges | JAYPEE-209 | 2 | 1000 Pairs |
| 10 | 4MM Wedges (XL Type) | JAYPEE-210 | 2 | 1000 Pairs |
| 11 | 4MM Wedges | JAYPEE-211 | 2 | 1000 Pairs |
| 12 | 2.5MM Wedges | JAYPEE-212 | 2 | 1000 Pairs |
